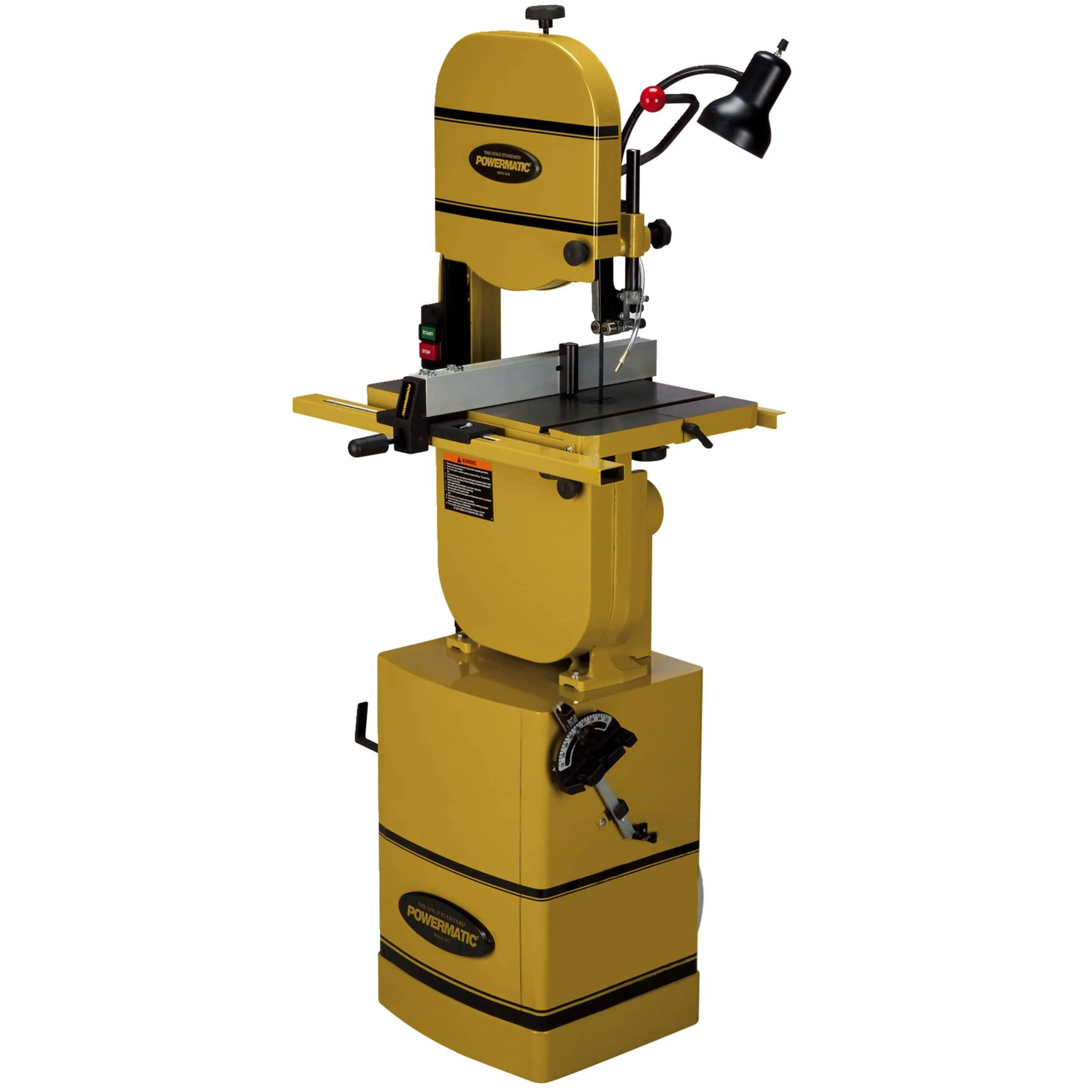

The Powermatic® PWBS-14CS can handle the most demanding tasks with ease. Equipped with a powerful 1-1/2 HP motor, this 14" woodworking bandsaw delivers reliable performance for various cutting applications. Offering a full 6" under guide capacity with 13-1/2" frame to blade clearance, making it ideal for slicing thick boards or creating veneers.
The PWBS-14CS has an extra-large, two-piece cast iron table. It consists of a 15 x 15" tilting section and a fixed 15" x 5" extension for a total working surface area of 15" x 20". The balanced, 9-spoke cast iron wheels ensure smooth operation. At the same time, the micro-adjustable dual-bearing blade guide system guarantees precise blade control above and below the table. Carter's quick tension release lever expedites blade changes, making your workflow more efficient. The rigid, one-piece welded stand requires no assembly, providing long-term stability and durability. Illuminate your work area with the built-in 60-watt halogen lamp, providing direct light on the blade and workpiece for enhanced cutting visibility. The chip blower ensures a clean and precise cut line, allowing you to maintain accuracy throughout your projects.
The PWBS-14CS has an extra-large, two-piece cast iron table. It consists of a 15 x 15" tilting section and a fixed 15" x 5" extension for a total working surface area of 15" x 20". The balanced, 9-spoke cast iron wheels ensure smooth operation. At the same time, the micro-adjustable dual-bearing blade guide system guarantees precise blade control above and below the table. Carter's quick tension release lever expedites blade changes, making your workflow more efficient. The rigid, one-piece welded stand requires no assembly, providing long-term stability and durability. Illuminate your work area with the built-in 60-watt halogen lamp, providing direct light on the blade and workpiece for enhanced cutting visibility. The chip blower ensures a clean and precise cut line, allowing you to maintain accuracy throughout your projects.
Features:
- Extra-large, 2-piece cast iron table for a total working surface area of 15" x 20"
- 1-1/2 HP 115/230V motor
- Full 6" under-guide capacity with 13-1/2" frame-to-blade clearance

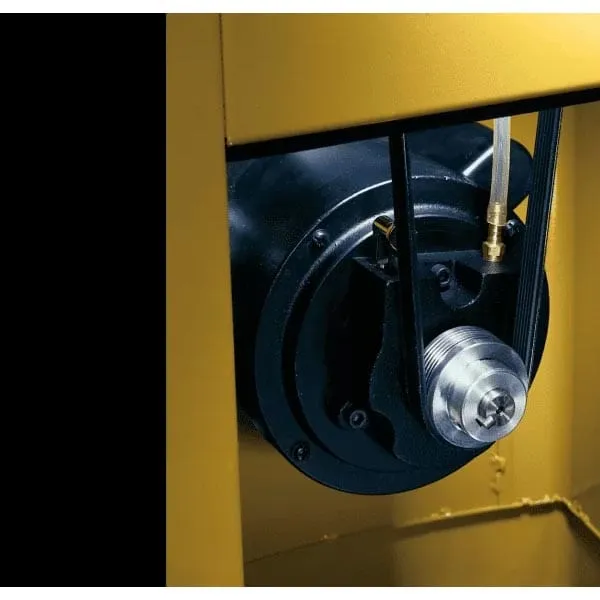

- Poly V-belt maximizes power transmission while minimizing noise and vibration

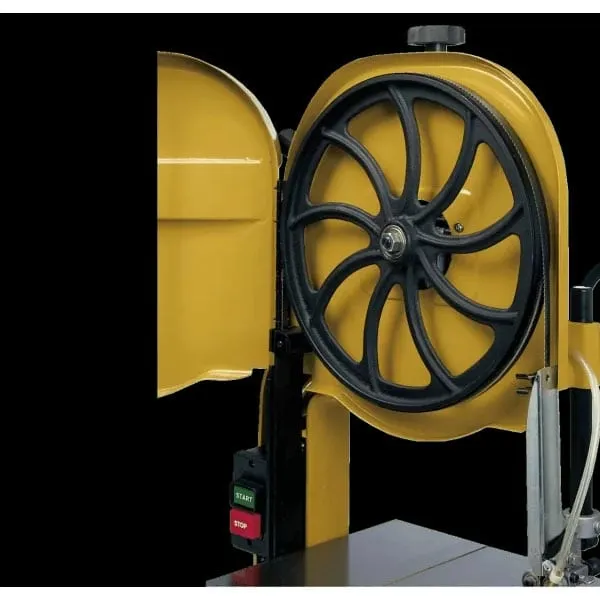

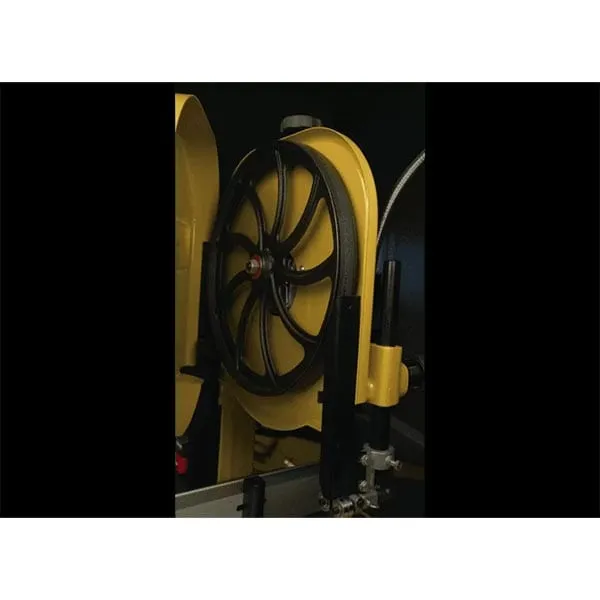

- Balanced, 9-spoke cast iron wheels run smoothly
- Easy-to-read tensioning gauge settings indicated in blade width increments
- Carter quick tension release lever speeds up blade changes

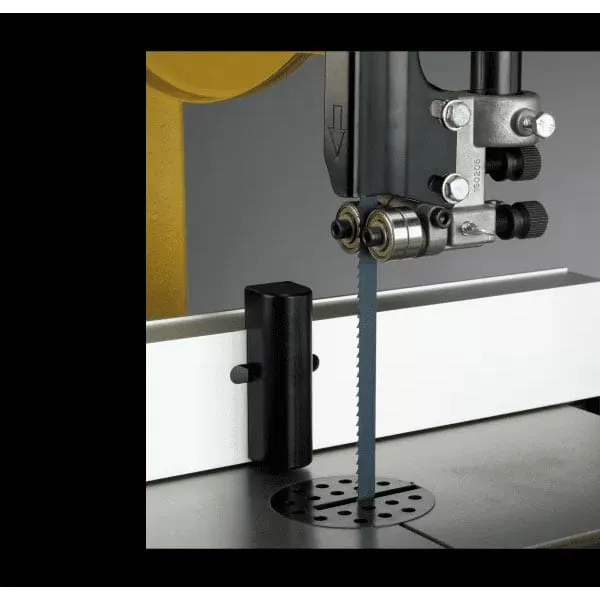

- Durable micro-adjustable dual-bearing blade guide system above and below the table

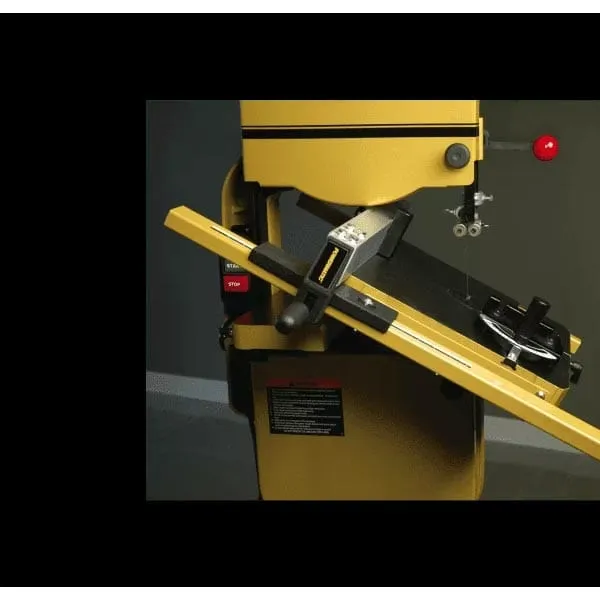

- Quick-release T-square style fence system with resaw assembly
- 93-1/2" long blade with a blade width ranging from 1/8" to 3/4" wide
- Option for a 6" Riser Block, making the total blade length 105"
- 60-watt halogen lamp built into the body, providing direct light on the blade and workpiece while cutting
- Chip blower ensures a clean, visible cut line
- Built-in 4" dust port
- Frame-mounted push-button switch
- Rigid 1-piece welded stand requires no assembly
Specifications:
- Style: Floor Model
- Motor Type: TEFC (totally-enclosed fan-cooled)
- Motor Power: 1-1/2 HP
- Motor Current: 11 / 5.5A
- Motor Phase : 1
- Motor Voltage: 115 / 230V
- Prewired Voltage: 115V
- Recommended Circuit Size: 30A (115V), 20A (230V)
- Wheel Diameter: 14"
- Blade Length: 93-1/2" (With 6" Riser Block installed, blade length required will be 105")
- Blade Speed: 3000 SFPM
- Cutting Capacity Height: 6"
- Cutting Capacity Width: 13-1/2"
- Dust Collection Minimum CFM Required: 350 CFM
- Dust Port Outside Diameter: 4"
- Maximum Saw Blade Width: 3/4"
- Minimum Saw Blade Width: 1/8"
- Overall Dimensions (L x W x H): 20" x 34" x 68"
- Stand Footprint (L x W): 16" x 17-1/2"
- Table Height from Floor: 44"
- Main Table Size (L x W): 15" x 15"
- Extension Table Size (L x W): 15" x 5-1/2"
- Table Tilt: 10° Left, 45° Right
What's Included:
- (1) Powermatic - PWBS-14CS 14" Woodworking Bandsaw
- (1) 6” Riser block kit
- (1) Adjustable miter gauge
- (1) Rip fence
- (1) Gooseneck work light and chip blower
- (1) Bandsaw blade - 93-1/2" x 3/8" x 0.020" x 6 TPI
Note:
- With 6" Riser Block installed, blade length required will be 105"
